Cultraro offers infinite solutions for damping movement. Whether it be a rotary, axial, or linear damper or one of our push push latches, we have a solution for your product. Whatever object you want to slow down, we have the right damper for you. Each damper we produce is designed specifically for your product, making every movement more fluid and silent. With Cultraro dampers it is possible to soften any opening and closing, offering high quality and maximum safety.

Cultraro damper

ROTARY DAMPERS

Small Rotary dampers are extremely useful components for accurate opening and closing of small lids and drawers because they allow controlled deceleration.

The torque in the small rotary dampers is determined by the viscosity of the fluid and the structure of the geometrical components inside the device. We can offer customized versions in any desired torque within the standard range.

How small rotary dampers are used

Small Rotary dampers are used in many sectors where small components are needed, such as furniture, electronics, medical, and aerospace industries.

Cultraro small rotary dampers are mainly applied to cup holders, center armrests, glove boxes, handles, washing machines, refrigerator doors, toilet seats, garbage cans and drawers.



ROTARY DAMPERS filter by:

TORQUE (Ncm)
DIAMETER
DIRECTION
CLIP
HOLES

ROTARY DAMPERS Cultraro Quality and
Innovation

Innovation, customization and quality: these are the objectives we set for ourselves every day in the design and manufacturing of Cultraro dampers, 100% tested and rigorously checked one by one within the supply chain.

Thanks to the internal R&D department that allows us to meet the stringent validation requirements of our customers, we continue to explore new applications for our dampers,

Find out more
Our products: ROTARY DAMPERS
Small rotary damper one way R/L

C SERIES

Small rotary damper one way R/L

SUBSERIES CJ R/L

CJ one way small rotary damper has holes mounting feature, a body diameter of 15 mm and available torque fro 1 up to 4Ncm at 20rpm.

Graphic CJ3A200-R
More information
Small rotary damper two ways

C SERIES

Small rotary damper two ways

SUBSERIES CHJ

The CHJ small rotary damper two ways has rear clip and collar mounting feature, a body diameter of 15 mm and available torque of 3.50 Ncm.

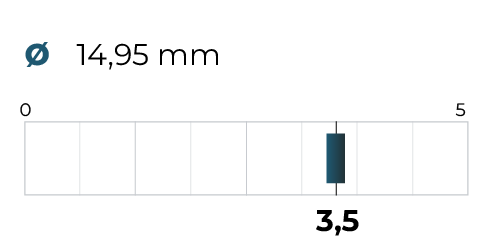

Graphic CHJ4A045-MA
More information
Small rotary damper two ways

C SERIES

Small rotary damper two ways

SUBSERIES CA

The CA small rotary damper two ways has holes mounting feature, a body diameter of 15 mm and available torque from 0.12 Ncm to 2.20 Ncm.

Graphic CA3F220-AR
More information
Small rotary damper two ways

C SERIES

Small rotary damper two ways

SUBSERIES CB

The CB small rotary damper two ways has holes mounting feature, a body diameter of 15 mm and available torque from 0.12 Ncm to 3.50Ncm.

Graphic CB3D095-RO
More information
Small rotary damper two ways

C SERIES

Small rotary damper two ways

SUBSERIES CD

The CD small rotary damper two ways has front clip and collar mounting feature, a body diameter of 15 mm and available torque from 0.12 Ncm to 3.50 Ncm.

Graphic CD3A120-BL
More information
Small rotary damper two ways

C SERIES

Small rotary damper two ways

SUBSERIES CE

The CE small rotary damper two ways has front clip and collar mounting feature, a body diameter of 15 mm and available torque from 0.12 Ncm to 2.20 Ncm; 2.70Ncm and 3.50Ncm couple can be made upon request.

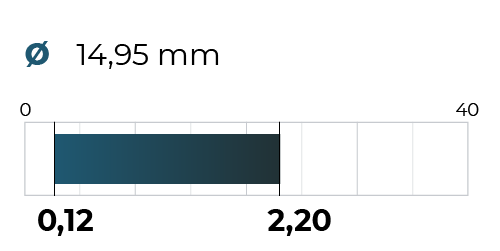

Graphic CE3D030-VE
More information

Inside the dampers

Find out how our dampers are used

Already know how dampers work?

Search for the damper that's right for you or contact us for a customized solution.
