ROTARY DAMPERS
C SERIES High-torque mini rotary damper with front clip mounting
SUBSERIES CMD
.png)
Description
The CMD high-torque mini rotary damper is designed for applications requiring high damping torque in an extremely compact package.
With a body diameter of only 10.5 mm and a customizable torque range from 0.2 to 2.7 Ncm, it delivers smooth and controlled motion while optimizing space in compact mechanisms.
Its front clip mounting system enables fast manual or automated assembly, providing secure installation and easy integration into OEM applications. Multiple gear configurations, torque values and color customizations are available to meet specific application requirements.

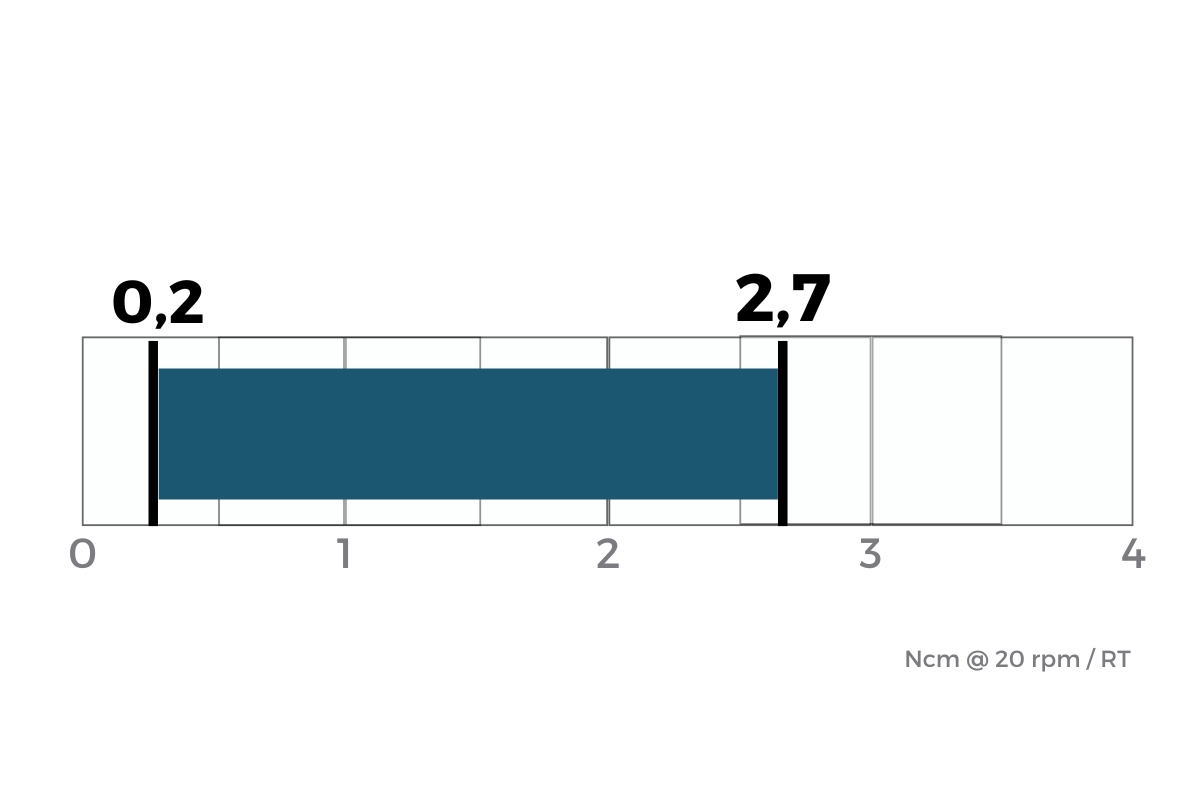

Torque (ncm):
.jpg?date=01:24:01)
DIAMETER:
10,5
DIRECTION:
two ways
TECHNICAL MATERIAL:
POM (rotor) + PC (base) + POM gear + silicone oil
MATERIAL:
plastic
CLIP:
front clips
Holes:
-
Applications
Automotive interiors
Home appliances
Medical devices
Consumer electronics
Compact mechanical assemblies
Let's slow the world down!
Fill out the form to receive the technical datasheet and/or the 3d drawing of the product.
