Cultraro offers infinite solutions for damping movement. Whether it be a rotary, axial, or linear damper or one of our push push latches, we have a solution for your product. Whatever object you want to slow down, we have the right damper for you. Each damper we produce is designed specifically for your product, making every movement more fluid and silent. With Cultraro dampers it is possible to soften any opening and closing, offering high quality and maximum safety.

Cultraro damper

ROTARY DAMPERS

Rotary dampers are extremely useful components for accurate opening and closing of small lids and drawers because they allow controlled deceleration.

The torque in the rotary dampers is determined by the viscosity of the fluid and the structure of the geometrical components inside the device. We can offer customized versions in any desired torque within the standard range.

How rotary dampers are used

Rotary dampers are used in many sectors where small components are needed, such as furniture, electronics, medical, and aerospace industries.

Cultraro rotary dampers are mainly applied to cup holders, center armrests, glove boxes, handles, washing machines, refrigerator doors, toilet seats, garbage cans and drawers.



Filter by

TORQUE (Ncm)
DIAMETER
DIRECTION
CLIP
HOLES

Quality and
Innovation

Innovation, customization and quality: these are the objectives we set for ourselves every day in the design and manufacturing of Cultraro dampers, 100% tested and rigorously checked one by one within the supply chain.

Thanks to the internal R&D department that allows us to meet the stringent validation requirements of our customers, we continue to explore new applications for our dampers,

Find out more
Rotary damper two ways

C SERIES

Rotary damper two ways

SUBSERIES CG

The CG rotary damper two ways has big front clip mounting feature, a body diameter of 15 mm and available torque from 0.12 Ncm to 2.20 Ncm.

Graphic CG3D060-NE
More information
Rotary damper two way

C SERIES

Rotary damper two way

SUBSERIES CI

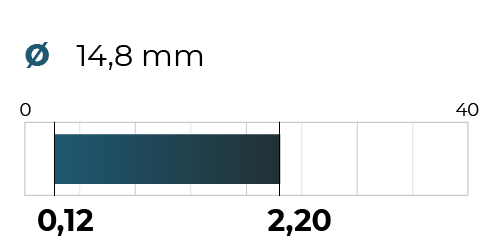

The CI rotary damper two way has big holes of 3 mm mounting feature, a body diameter of 15 mm and available torque from 0.12 Ncm to 2.20 Ncm.

Graphic CI3F012-BE
More information
Rotary damper two ways

C SERIES

Rotary damper two ways

SUBSERIES CJ

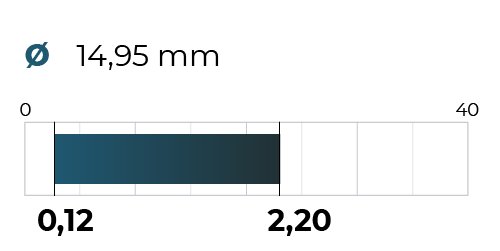

The CJ rotary damper two ways has big rear clip mounting feature, a body diameter of 15 mm and available torque from 0.12 Ncm to 2.20 Ncm.

Graphic CJ3D025-GI
More information
Rotary damper one way R/L

C SERIES

Rotary damper one way R/L

SUBSERIES CB

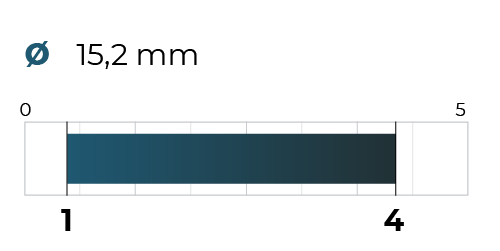

CB one way rotary damper has holes mounting feature, a body diameter of 15 mm and available torque fro 1 up to 4Ncm at 20rpm.

Graphic CB3A200-R
More information
Rotary damper one way R/L

C SERIES

Rotary damper one way R/L

SUBSERIES CD

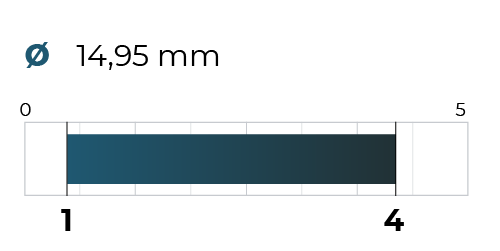

CD one way rotary damper has front clip mounting feature, a body diameter of 15 mm and available torque fro 1 up to 4Ncm at 20rpm.

Graphic CD3A150-R
More information
Big rotary damper two ways

D SERIES

Big rotary damper two ways

SUBSERIES DE

The DE big rotary damper two ways has holes mounting feature, a body diameter of 22 mm and available torque from 2,5 Ncm to 15 Ncm.

Graphic DE3H030
More information

Inside the dampers

Find out how our dampers are used

Already know how dampers work?

Search for the damper that's right for you or contact us for a customized solution.
