ROTARY DAMPERS
C SERIES Mini rotary damper with rear clip
SUBSERIES CMJ
.png)
Description
The CMJ mini rotary damper is designed for compact applications requiring concealed installation and smooth, controlled motion.

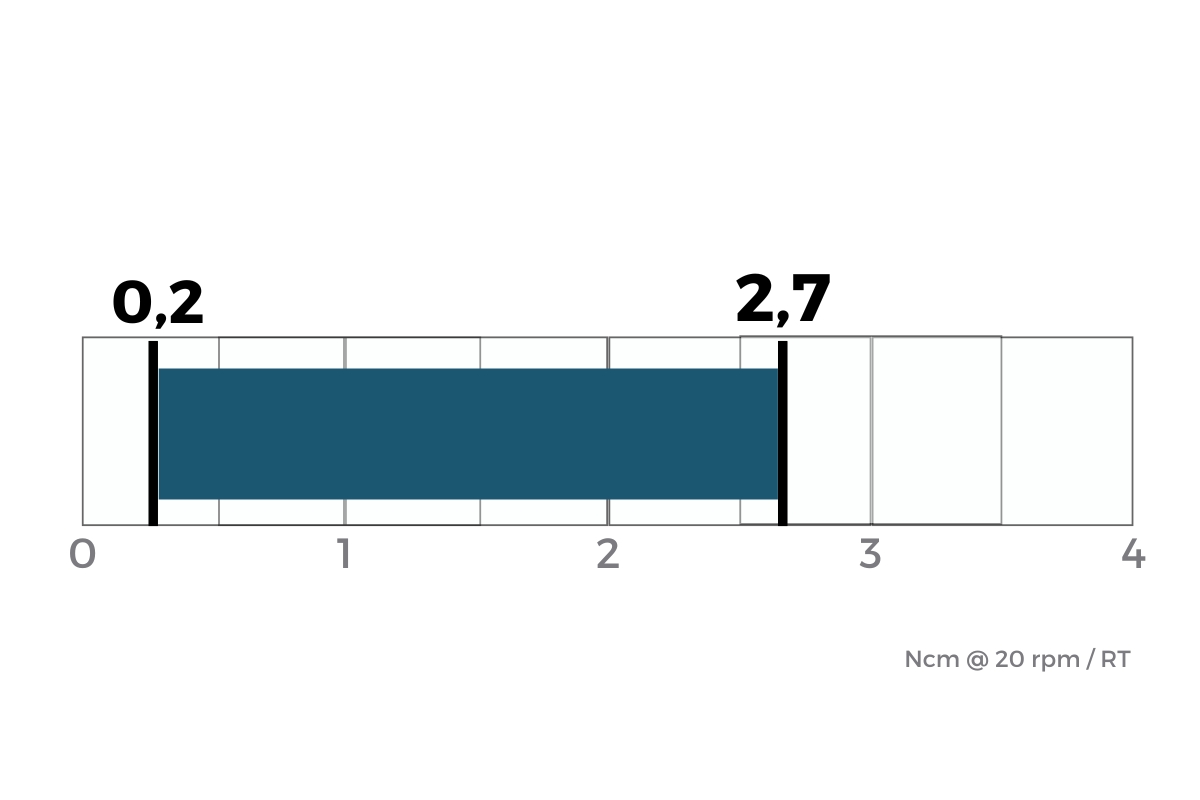

With a body diameter of only 10.5 mm and a customizable torque range from 0.2 to 2.7 Ncm, it delivers reliable damping performance while remaining hidden inside the assembly.
The rear clip mounting system enables quick installation without visible fixing elements, making it suitable for products where both functionality and appearance are important. Multiple gear configurations, torque values and color customizations are available to meet specific OEM requirements.
Force (n):
DIAMETER:
10,5
DIRECTION:
two ways
TECHNICAL MATERIAL:
POM (rotor) + PC (base) + POM gear + silicone oil
MATERIAL:
plastic
CLIP:
rear clips
Holes:
-
Applications
Automotive interiors
Consumer electronics
Home appliances
Medical devices
Compact mechanical assemblies
Let's slow the world down!
Fill out the form to receive the technical datasheet and/or the 3d drawing of the product.
