ROTARY DAMPERS
C SERIES Small rotary damper two ways
SUBSERIES CE
Description
The CE small rotary damper two ways has front clip and collar mounting feature, a body diameter of 15 mm and available torque from 0.12 Ncm to 2.20 Ncm. We can customize the product in any torque within this range. Many gear wheels are available and customizations of torque or color are possible. Snap-on clips mounting are suitable for a very efficient and simple manual or automatic assembly.

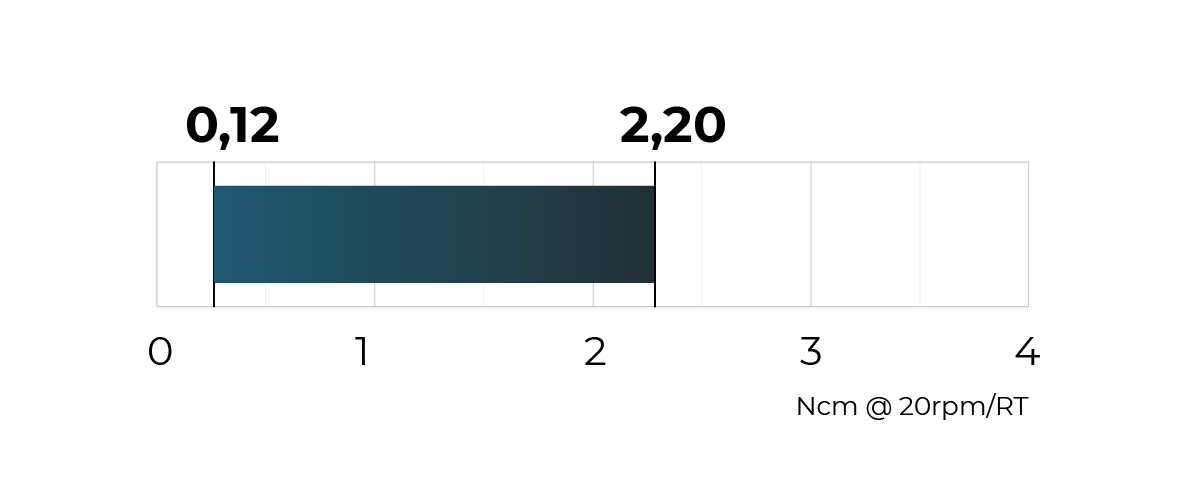

Torque (ncm):
0,12 - 2,20 Ncm @ 20rpm/RT
DIAMETER:
14,95
DIRECTION:
two ways
TECHNICAL MATERIAL:
POM (rotor) + PA66GF13 (base) + POM gear + silicone oil
MATERIAL:
plastic
CLIP:
front clips
Holes:
-
Applications
The CE small rotary damper two ways main applications are headrests, central console, glasses drawer, bins, central armrest, ashtray, mobile phone holder, fuel door, as well as shelves for hand luggage for airplanes, helmet visors, hi-fi systems, displays and vending machines, desk sockets, robotics applications, precision instruments, covers for 3D printers and scanners, joysticks, coffee machines, vacuum cleaners, oven hinges and any other small or medium weight rotary application.
