Soft motion,
Soft motion,
easy life
Cultraro offers infinite solutions for damping movement. Whether it be a rotary, axial, or linear damper or one of our push push latches, we have a solution for your product. Whatever object you want to slow down, we have the right damper for you. Each damper we produce is designed specifically for your product, making every movement more fluid and silent. With Cultraro dampers it is possible to soften any opening and closing, offering high quality and maximum safety.
AXIAL DAMPERS
Axial dampers are conceptually similar to rotary dampers in principle of operation - the torque is determined by the viscosity of the fluid and the position of the blades that rotate inside the device - but differ in positioning, as the axial dampers are normally installed directly on the rotation axis of the application. To facilitate installation on the axis, some versions of axial dampers have a pass-through hole. In addition, for the whole F Series we can offer customized versions in any desired torque within the standard range.
How axial dampers are used
Axial dampers are normally used on handles and luggage covers, to facilitate their opening and closing movements.
AXIAL DAMPERS filter by:
AXIAL DAMPERS
Cultraro Quality and
Innovation
Innovation, customization and quality: these are the objectives we set for ourselves every day in the design and manufacturing of Cultraro dampers, 100% tested and rigorously checked one by one within the supply chain.
Thanks to the internal R&D department that allows us to meet the stringent validation requirements of our customers, we continue to explore new applications for our dampers,
Our products: AXIAL DAMPERS

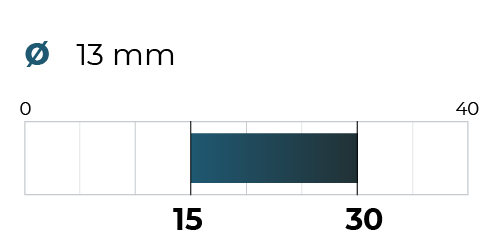

BB small barrel dampers high torque can rotate in both directions for 110° and is available in torque of 15, 20 and 30 Ncm.
The BF small axial barrel damper high torque can rotate in both directions for 110° and is available in torque of 15, 20 and 30 Ncm.

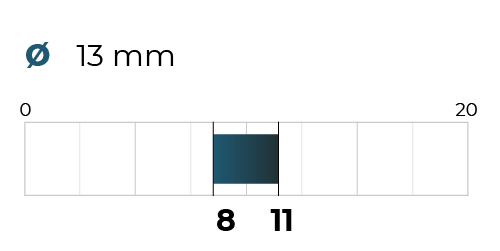

The FA small axial barrel damper is available in many torque from 6 Ncm to 11 Ncm.

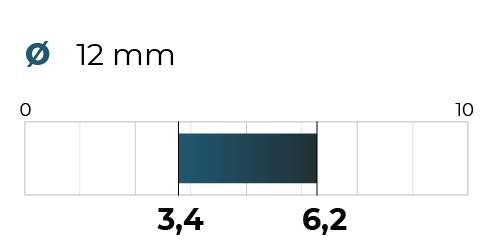

The FB small axial barrel damper is available in many torque from 3.4 Ncm to 6.2 Ncm.

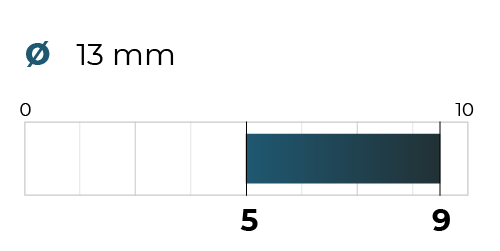

The small axial barrel damper FC is available in many torque from 5 Ncm to 9 Ncm.
The FE small axial barrel damper is available in many torque from 6 Ncm to 11 Ncm.
Inside the dampers
Find out how our dampers are used
Infographics
Explore the key points for choosing the right damper
Infographics
Axial and rotary dampers on lockers doors
Automotive
Axial dampers on the new Volkswagen ID7
Automotive
Rotary dampers on the cupholder of the Mercedes-Benz E-Class
Automotive
Axial dampers and push latches on the new Volvo EX90
House and appliances
Axial dampers on the lids of top-loading washing machines
Already know how dampers work?
Search for the damper that's right for you or contact us for a customized solution.
