AXIAL DAMPERS
FN SERIES Axial rollo damper
SUBSERIES FN
Description
The axial rollo damper FN is available with a torque of 13 Ncm. Customizations of torque or color are possible. “One Way” function and his robustness make the axial rollo damper an innovative and product.
Torque (ncm):

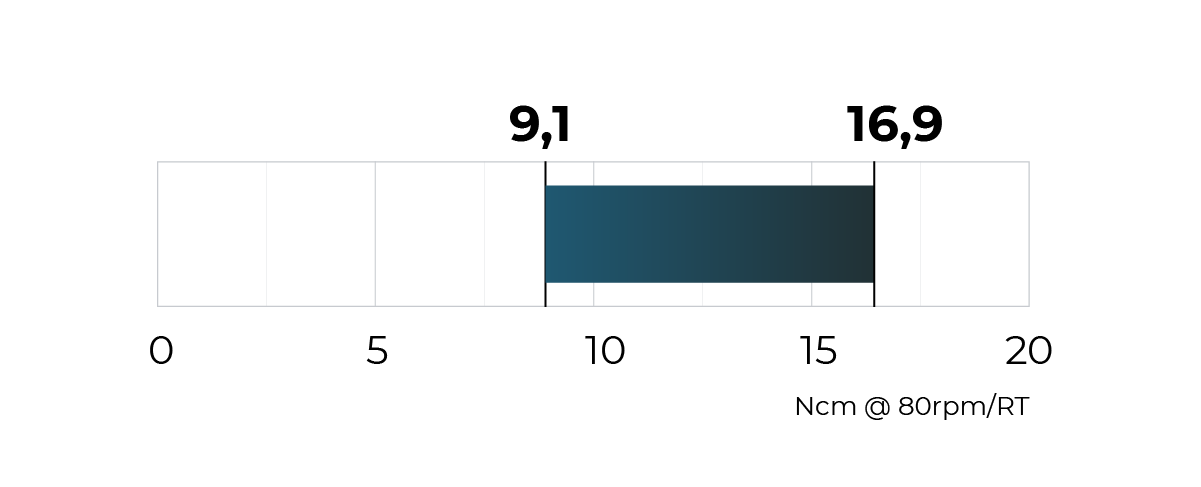

9,1 - 16,9 Ncm @ 80 rpm/RT
DIAMETER:
13
DIRECTION:
one way
TECHNICAL MATERIAL:
PA66GF15 (base) + PBT GF30 (rotor) + silicone oil
MATERIAL:
plastic
CLIP:
-
Holes:
-
Applications
At the moment the axial rollo damper FN is used for car luggage covers but can be easily implemented in much more applications such as courtesy mirrors, central armrests, as well as on candy containers, covers for 3D printers and scanners, lawnmowers, hinge for ovens, doors and control panels for boilers and air conditioners, and more applications.
Let's slow the world down!
Fill out the form to receive the technical datasheet and/or the 3d drawing of the product.
