AXIAL DAMPERS
B SERIES Small axial barrel dampers high torque
SUBSERIES BB
Description
BB small barrel dampers high torque can rotate in both directions for 110° and is available in torque of 15, 20 and 30 Ncm. Customizations of torque or color are possible.
Torque (ncm):

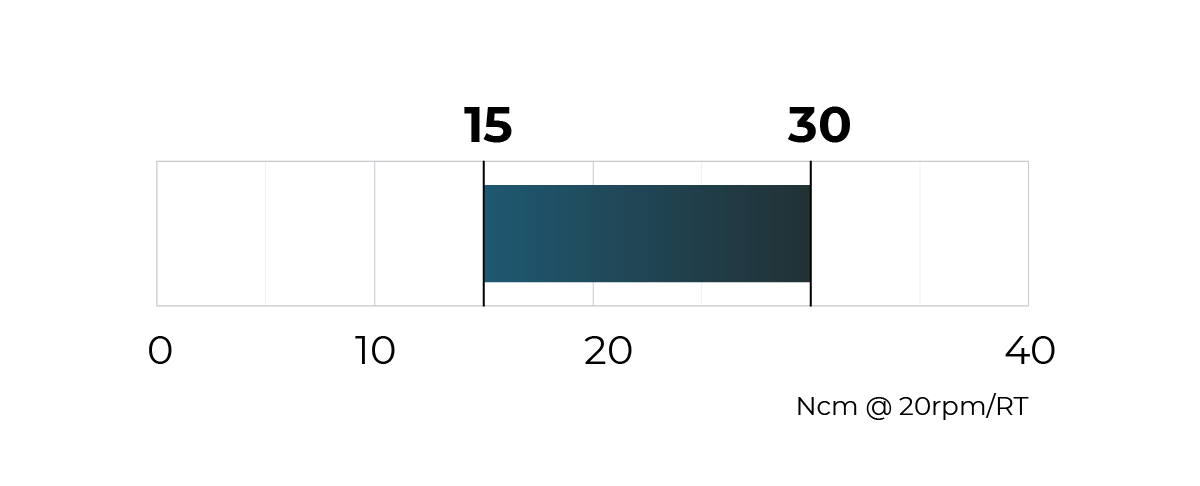

15 - 30 Ncm @20rpm /RT
DIAMETER:
13
DIRECTION:
two ways
TECHNICAL MATERIAL:
POM (rotor) + PA6GF15 (base) + silicone oil
MATERIAL:
plastic
CLIP:
-
Holes:
-
Applications
BB small barrel dampers high torque main applications are grab handles and tablet holders as well as shelves for hand luggage for airplanes, candy containers, rice cookers, doors and control panels for boilers and air conditioners.
Let's slow the world down!
Fill out the form to receive the technical datasheet and/or the 3d drawing of the product.
