AXIAL DAMPERS

FN SERIES
Axial rollo damper
SUBSERIES FN

Description

FN series is available with a torque of 13 Ncm. Customizations of torque or color are possible. “One Way” function and his robustness make the FN damper an innovative and product.

TORQUE (ncm):

9,1 - 16,9 Ncm @ 80 rpm/RT

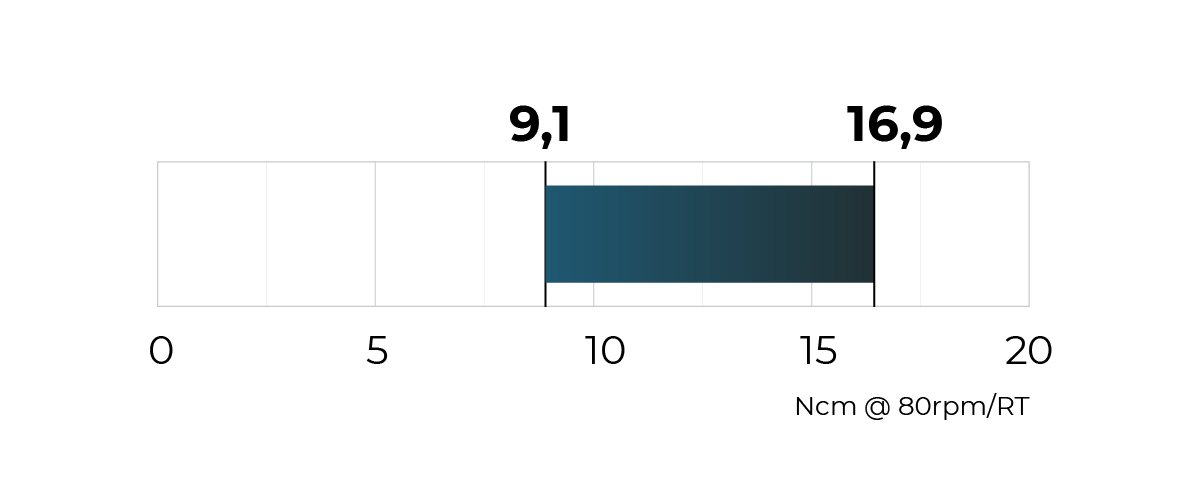

Torque schema 9,1 - 16,9 Ncm @ 80 rpm/RT
DIAMETER:

13

DIRECTION:

one way

TECHNICAL MATERIAL:

PA66GF15 (base) + PBT GF30 (rotor) + silicone oil

MATERIAL:

plastic

CLIP:

-

HOLES:

-

Applications

At the moment is used for car luggage covers but can be easily implemented in much more applications such as courtesy mirrors, central armrests, as well as on candy containers, covers for 3D printers and scanners, lawnmowers, hinge for ovens, doors and control panels for boilers and air conditioners, and more applications.
