AXIAL DAMPERS

F SERIES
Axial barrel damper
SUBSERIES FB

Description

The FB axial barrel damper is available in many torque from 3.4 Ncm to 6.2 Ncm. We can customize the product in any torque within this range. Customizations of color are also possible.

TORQUE (ncm):

3,4 - 6,2 Ncm @ 20 rpm /RT

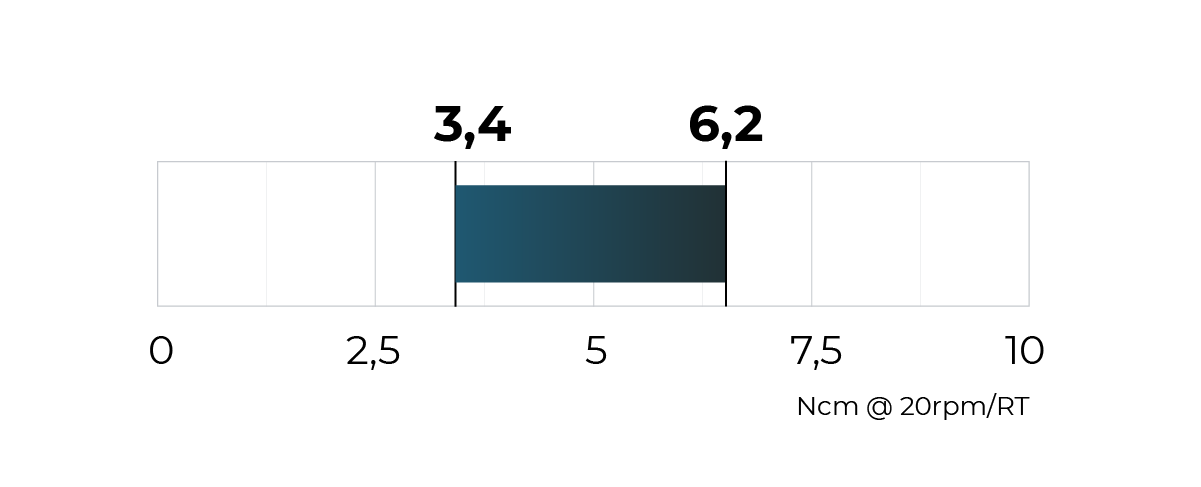

Torque schema 3,4 - 6,2 Ncm @ 20 rpm /RT
DIAMETER:

12

DIRECTION:

two ways

TECHNICAL MATERIAL:

POM (rotor) + PC (base) + silicone oil

MATERIAL:

plastic

CLIP:

-

HOLES:

hole 4,2 mm

Applications

FB Axial barrel damper main applications are grab handles, internal and external handles, tablet holder, courtesy mirror, central armrest, fuel door and trunk handle, as well as on candy containers, covers for 3D printers and scanners, lawnmowers, hinges for ovens, doors and control panels for boilers and air conditioners and any other medium weight rotary applications.
