ROTARY DAMPERS

D SERIES
Big rotary damper one way
SUBSERIES DE

Description

New DE “one-way” series has holes mounting feature, a body diameter of 22 mm and available torque from 3 Ncm to 15 Ncm. Many gear wheels are available and customizations of torque or color are possible. Holes mounting is suitable to be assembled by screw mounting or hot-pressing tips. “One Way” function and his robustness make the DE damper an innovative and reliable product.

TORQUE (ncm):

3 - 15 Ncm @ 20 rpm/RT

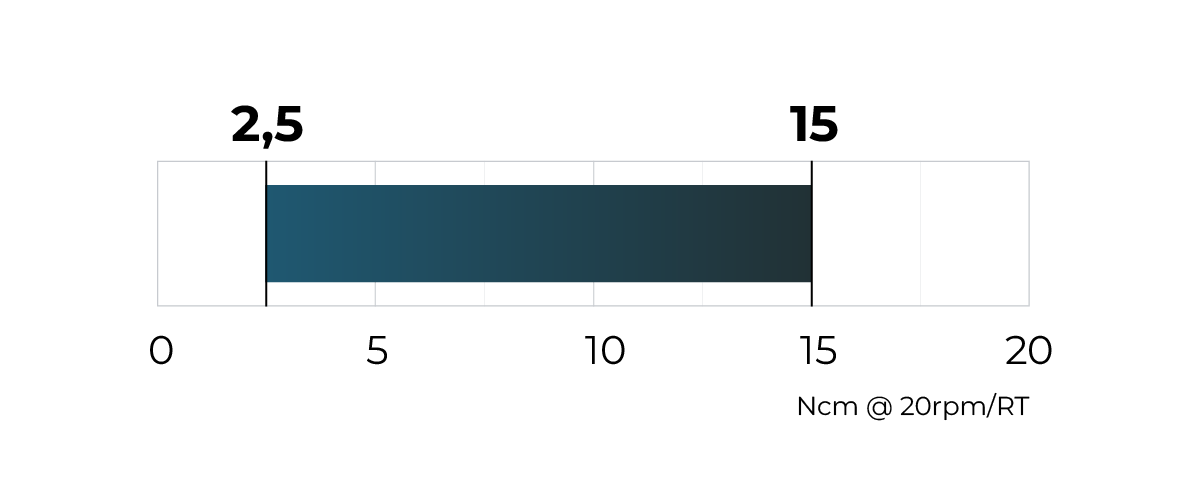

Torque schema 3 - 15 Ncm @ 20 rpm/RT
DIAMETER:

22

DIRECTION:

one way

TECHNICAL MATERIAL:

POM (gear) + PA6GF15 (base) + PA66 + silicone oil

MATERIAL:

plastic

CLIP:

-

HOLES:

holes 5 mm

Applications

Main applications are car steering columns, rear view cameras, as well as atm devices-continuous cashdisplays and vending machineselectric drills, lawnmowers, gasifiers, roller shutters and other medium and heavy applications.







Let's slow the world down

Cultraro is a world leader in the production of rotary, axial, linear dampers and push-push latches to slow down the opening / closing movements of different products and improve the quality of their operation in various technical applications.
