ROTARY DAMPERS
C SERIES Small rotary damper one way R/L
SUBSERIES CD R/L
Description
CD one way small rotary damper has front clip mounting feature, a body diameter of 15 mm and available torque fro 1 up to 4Ncm at 20rpm. We can customize the product in any torque within this range. Many gear wheels are available and customizations of torque or color are possible. Snap-on clips mounting are suitable for a very efficient and simple manual or automatic assembly. “One Way” function make this damper an innovative and reliable product.

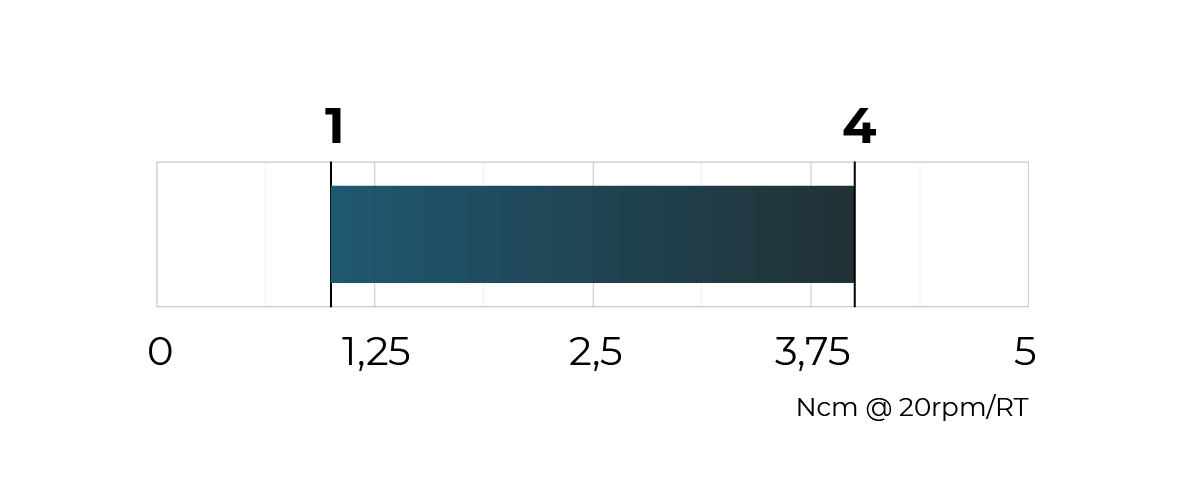

Torque (ncm):
1 - 4 Ncm @ 20rpm/RT
DIAMETER:
14,95
DIRECTION:
one way
TECHNICAL MATERIAL:
POM (rotor) + PA66GF13 (base) + POM gear + silicone oil
MATERIAL:
plastic
CLIP:
front clips
Holes:
-
Applications
CD one way small rotary damper main applications are headrests, central console, glasses drawer, bins, central armrest, ashtray, mobile phone holder, fuel door, as well as shelves for hand luggage for airplanes, helmet visors, hi-fi systems, displays and vending machines, desk sockets, robotics applications, precision instruments, covers for 3D printers and scanners, joysticks, coffee machines, vacuum cleaners, oven hinges and any other small or medium weight rotary application.
Let's slow the world down!
Fill out the form to receive the technical datasheet and/or the 3d drawing of the product.
