ROTARY DAMPERS
C SERIES Small rotary damper one way R/L
SUBSERIES CB R/L
Description
CB one way small rotary damper has holes mounting feature, a body diameter of 15 mm and available torque fro 1 up to 4Ncm at 20rpm. We can customize the product in any torque within this range. Many gear wheels are available and customizations of torque or color are possible. Holes mounting is suitable to be assembled by screw mounting or hot-pressing tips. “One Way” function make this damper an innovative and reliable product.

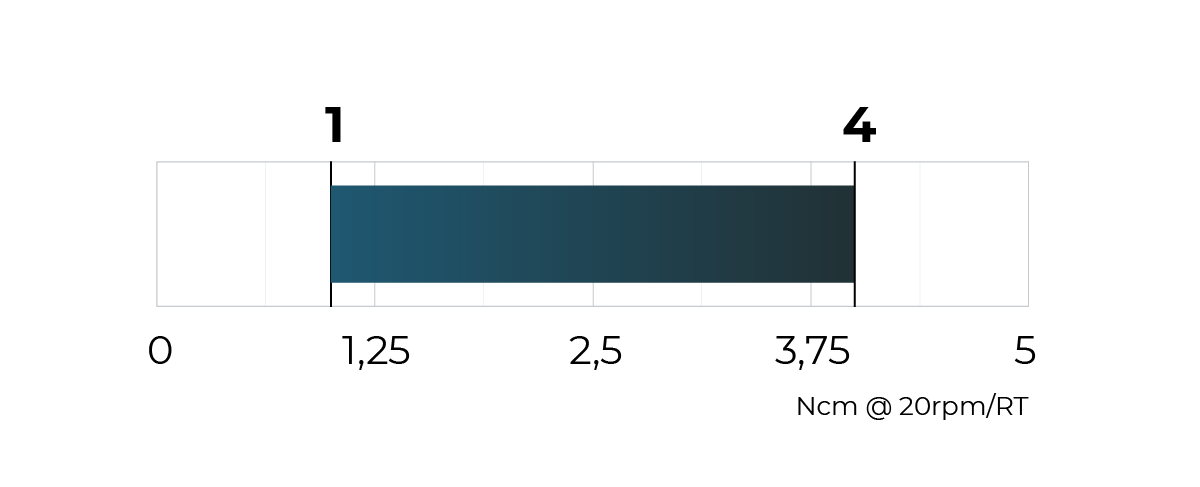

Torque (ncm):
1 - 4 Ncm @ 20rpm/RT
DIAMETER:
15,2
DIRECTION:
one way
TECHNICAL MATERIAL:
POM (rotor) + PA66GF13 (base) + POM gear + silicone oil
MATERIAL:
plastic
CLIP:
-
Holes:
-
Applications
CB one way small rotary damper main applications are headrests, central console, glasses drawer, bins, central armrest, ashtray, mobile phone holder, fuel door, as well as shelves for hand luggage for airplanes, helmet visors, hi-fi systems, displays and vending machines, desk sockets, robotics applications, precision instruments, covers for 3D printers and scanners, joysticks, coffee machines, vacuum cleaners, oven hinges and any other small or medium weight rotary application.
Let's slow the world down!
Fill out the form to receive the technical datasheet and/or the 3d drawing of the product.
