ROTARY DAMPERS

C SERIES
Small rotary damper two ways
SUBSERIES CHJ

Description

The CHJ small rotary damper two ways has rear clip and collar mounting feature, a body diameter of 15 mm and available torque of 3.50 Ncm. Many gear wheels are available and customizations of torque or color are possible. Snap-on clips mounting are suitable for a very efficient and simple manual or automatic assembly.

Torque (ncm):

3,5 Ncm @ 20rpm/RT

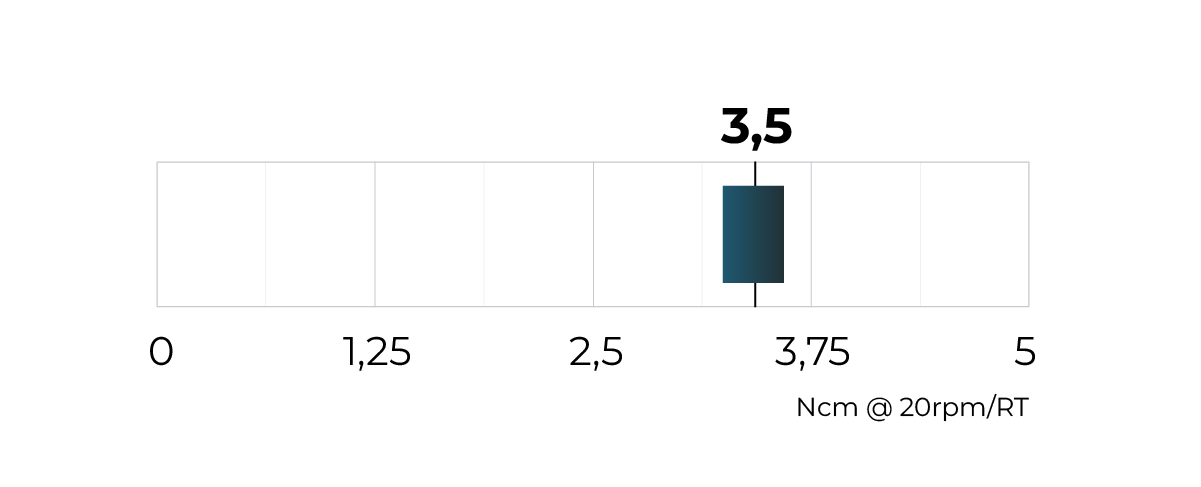

Torque schema 3,5 Ncm @ 20rpm/RT
DIAMETER:

14,95

DIRECTION:

two ways

TECHNICAL MATERIAL:

POM (rotor) + PA66GF13 (base) + POM gear + silicone oil

MATERIAL:

plastic

CLIP:

rear clips

Holes:

-

Applications

CHJ small rotary damper two ways main applications are headrests, central console, glasses drawer, bins, central armrest, ashtray, mobile phone holder, fuel door, as well as shelves for hand luggage for airplanes, helmet visors, hi-fi systems, displays and vending machines, desk sockets, robotics applications, precision instruments, covers for 3D printers and scanners, joysticks, coffee machines, vacuum cleaners, oven hinges and any other medium or high weight rotary application.
