ROTARY DAMPERS

C SERIES
Small rotary damper two way
SUBSERIES CI

Description

The CI small rotary damper two way has big holes of 3 mm mounting feature, a body diameter of 15 mm and available torque from 0.12 Ncm to 3.50 Ncm. We can customize the product in any torque within this range. Many gear wheels are available and customizations of torque or color are possible. Holes mounting is suitable to be assembled by screw mounting or hot-pressing tips

Torque (ncm):

0,12 - 3,50Ncm @ 20rpm/RT

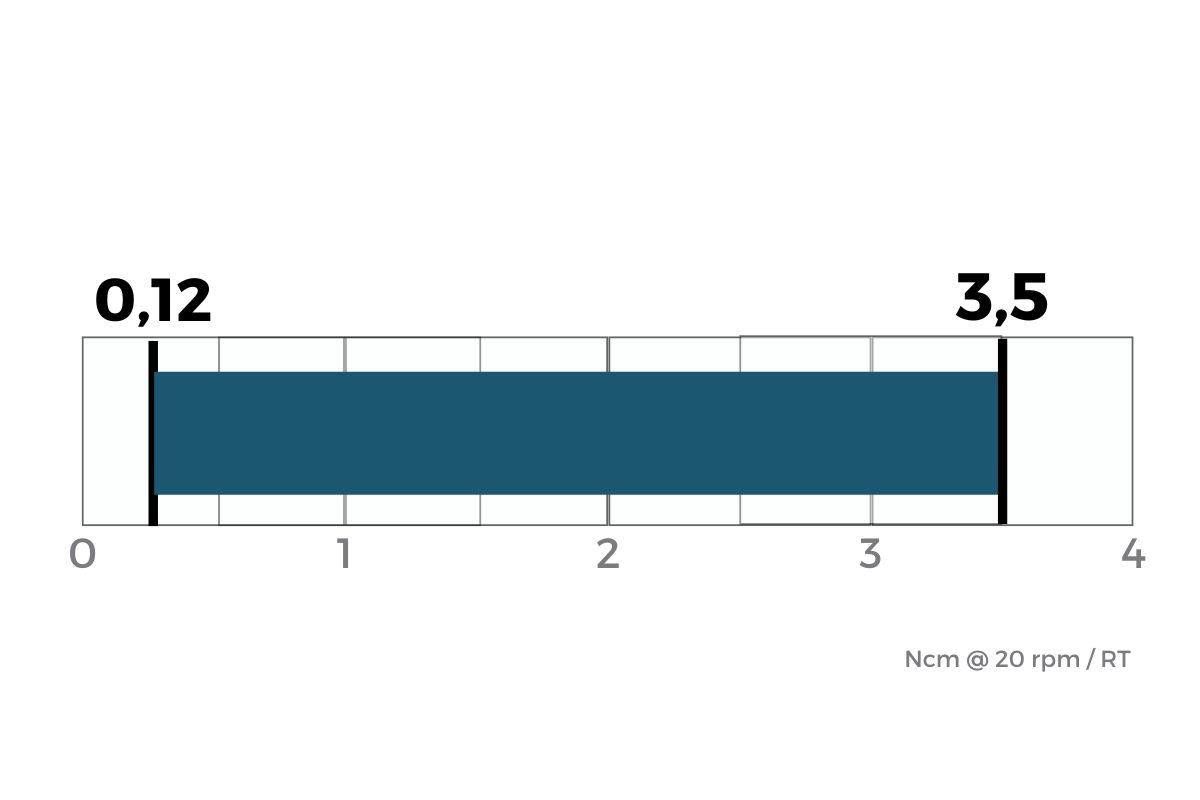

Torque schema 0,12 - 3,50Ncm @ 20rpm/RT
DIAMETER:

14,8

DIRECTION:

two ways

TECHNICAL MATERIAL:

POM (rotor) + PA66GF13 (base) + POM gear + silicone oil

MATERIAL:

plastic

CLIP:

-

Holes:

holes 3,1 mm

Applications

CI small rotary damper two ways main applications are headrests, central console, glasses drawer, bins, central armrest, ashtray, mobile phone holder, fuel door, as well as shelves for hand luggage for airplanes, helmet visors, hi-fi systems, displays and vending machines, desk sockets, robotics applications, precision instruments, covers for 3D printers and scanners, joysticks, coffee machines, vacuum cleaners, oven hinges and any other small or medium weight rotary application.
