ROTARY DAMPERS

C SERIES
Small rotary damper one way R/L
SUBSERIES CD R/L

Description

CD one way small rotary damper has front clip mounting feature, a body diameter of 15 mm and available torque fro 1 up to 4Ncm at 20rpm. We can customize the product in any torque within this range. Many gear wheels are available and customizations of torque or color are possible. Snap-on clips mounting are suitable for a very efficient and simple manual or automatic assembly. “One Way” function make this damper an innovative and reliable product.

Torque (ncm):

1 - 4 Ncm @ 20rpm/RT

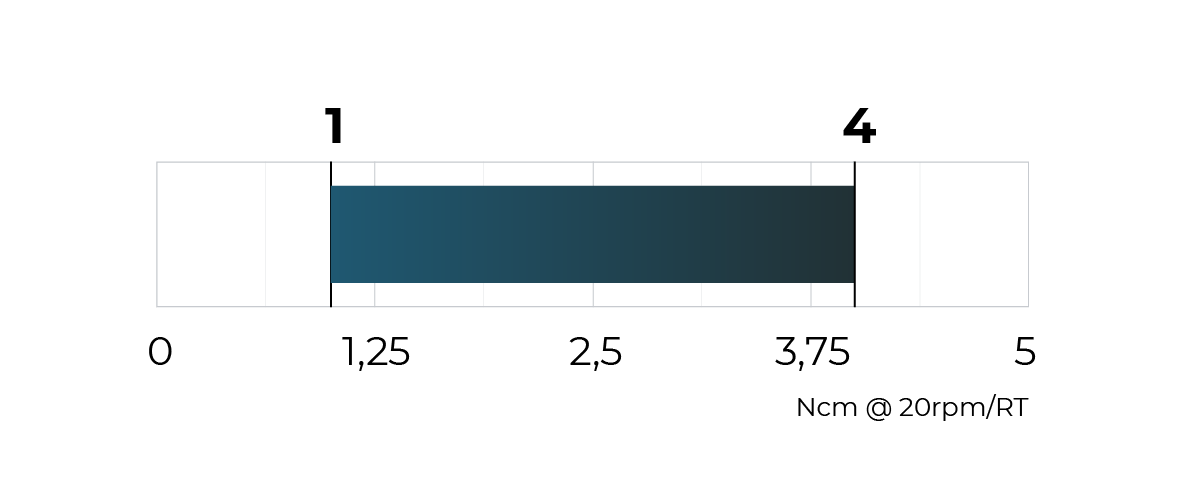

Torque schema 1 - 4 Ncm @ 20rpm/RT
DIAMETER:

14,95

DIRECTION:

one way

TECHNICAL MATERIAL:

POM (rotor) + PA66GF13 (base) + POM gear + silicone oil

MATERIAL:

plastic

CLIP:

front clips

Holes:

-

Applications

CD one way small rotary damper main applications are headrests, central console, glasses drawer, bins, central armrest, ashtray, mobile phone holder, fuel door, as well as shelves for hand luggage for airplanes, helmet visors, hi-fi systems, displays and vending machines, desk sockets, robotics applications, precision instruments, covers for 3D printers and scanners, joysticks, coffee machines, vacuum cleaners, oven hinges and any other small or medium weight rotary application.
