ROTARY DAMPERS
C SERIES CMD mini high torque rotary damper
SUBSERIES CMD
Description
The two-way mini rotary damper CMD features a front clip mounting function, a 10.5 mm body diameter, and an available torque range of 0.2 Ncm to 2.5 Ncm - the first damper with such high torque in such a small size. We can also customize the product to any torque within this range. Various gears are available and color customization is possible. The snap-on clips are suitable for very efficient and easy manual or automatic assembly.

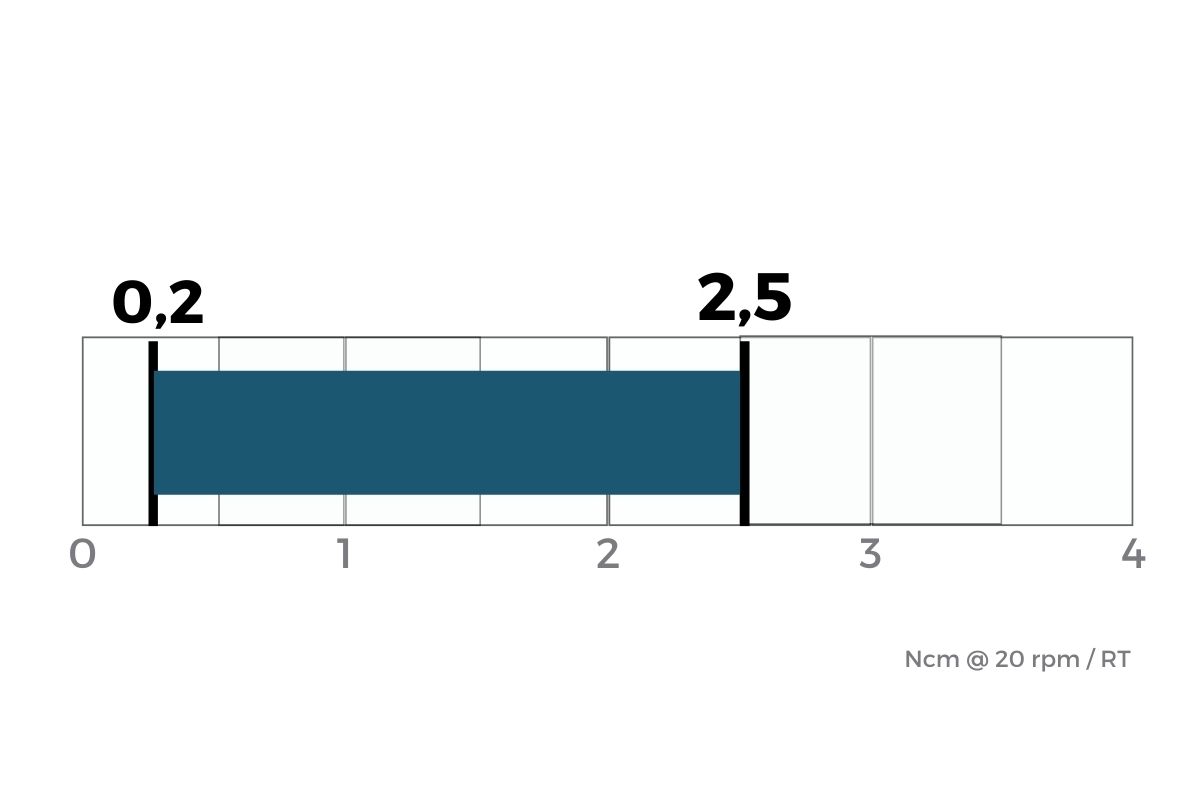

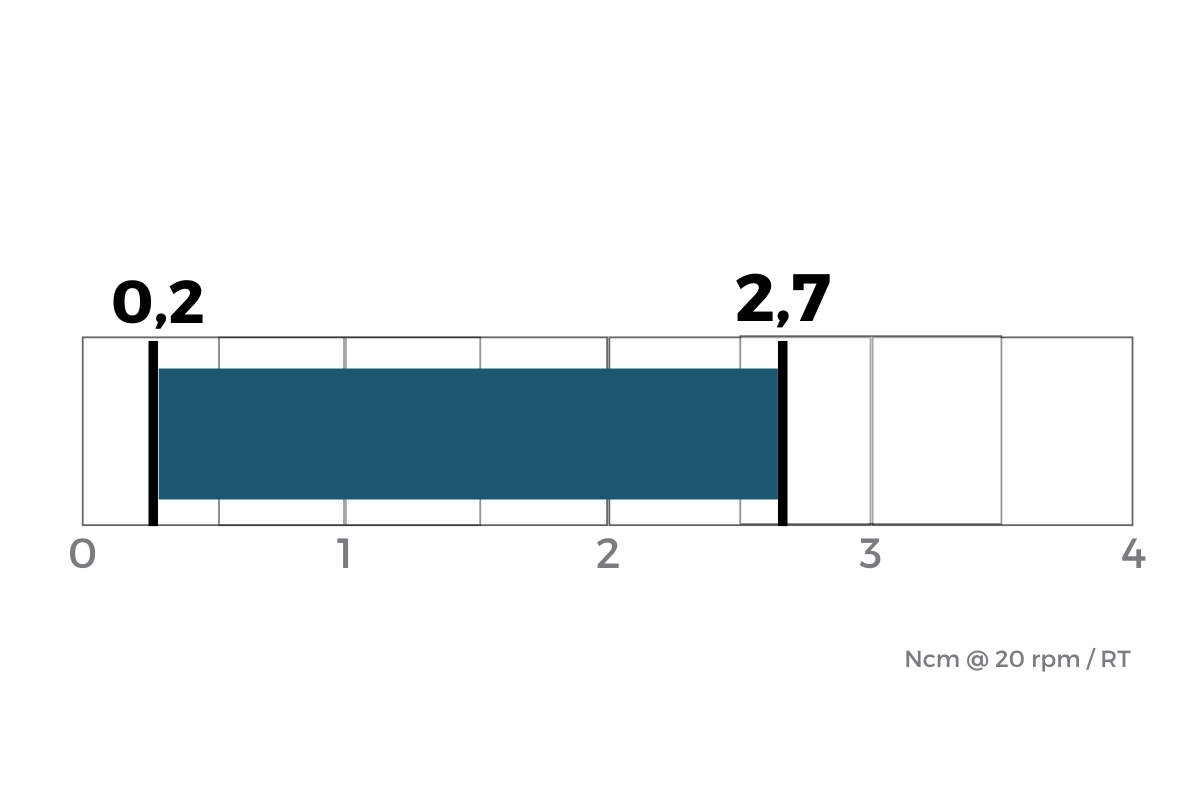

Torque (ncm):
DIAMETER:
10,5
DIRECTION:
two ways
TECHNICAL MATERIAL:
POM (rotor) + PC (base) + POM gear + silicone oil
MATERIAL:
plastic
CLIP:
front clips
Holes:
-
Applications
Its main applications are in industries where relatively high torque is required in a limited space, such as automotive, home appliances, medical, furniture, etc.
Let's slow the world down!
Fill out the form to receive the technical datasheet and/or the 3d drawing of the product.
