ROTARY DAMPERS
D SERIES Big rotary damper two ways
SUBSERIES DE
Description
The DE big rotary damper two ways has holes mounting feature, a body diameter of 22 mm and available torque from 2,5 Ncm to 15 Ncm. We can customize the product in any torque within this range. Many gear wheels are available and customizations of torque or color are possible. Holes mounting is suitable to be assembled by screw mounting or hot-pressing tips. “One Way” function and his robustness make the DE damper an innovative and reliable product.
Torque (ncm):

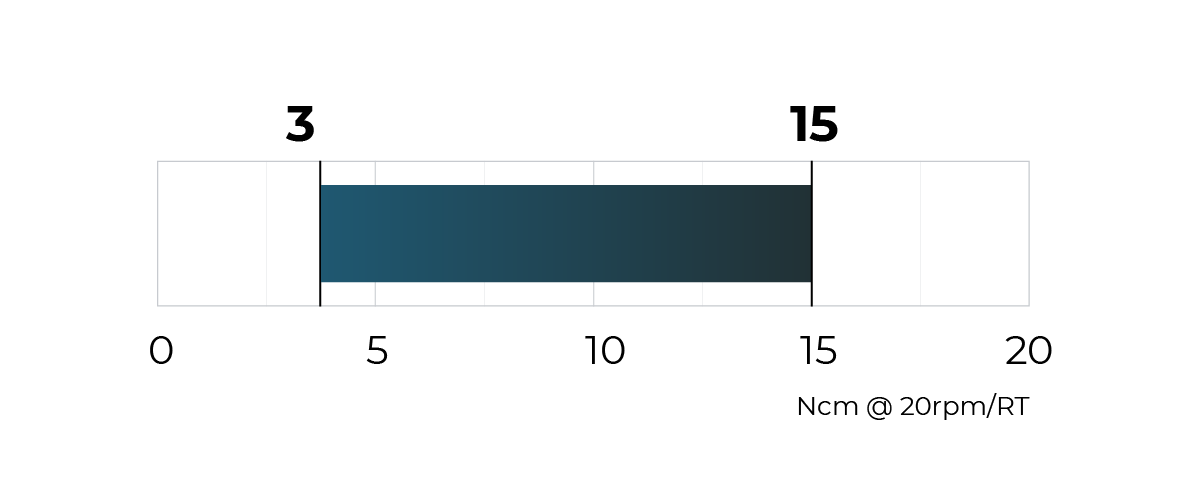

2,5 - 15 Ncm @ 20 rpm/RT
DIAMETER:
22
DIRECTION:
two ways
TECHNICAL MATERIAL:
POM (gear) + PA6GF15 (base) + PA66+PA6I/X-GF65 + silicone oil
MATERIAL:
plastic
CLIP:
-
Holes:
holes 5 mm
Applications
DE big rotary damper two ways main applications are rear view camera, steering column adjustment lever, storage compartment, internal and external handles, as well as ATM devices-cash systems, displays and vending machines, electric drills, lawnmowers, gasifiers, roller shutters and any other medium to heavy sliding or rotary application.
Let's slow the world down!
Fill out the form to receive the technical datasheet and/or the 3d drawing of the product.
