ROTARY DAMPERS

D SERIES
Big rotary damper one way
SUBSERIES DE R/L

Description

The DE big rotary damper one way has holes mounting feature, a body diameter of 22 mm and available torque from 2,5 Ncm to 15 Ncm. We can customize the product in any torque within this range. Many gear wheels are available and customizations of torque or color are possible. Holes mounting is suitable to be assembled by screw mounting or hot-pressing tips. “One Way” function and his robustness make the DE damper an innovative and reliable product.

Torque (ncm):

2,5 - 15 Ncm @ 20 rpm/RT

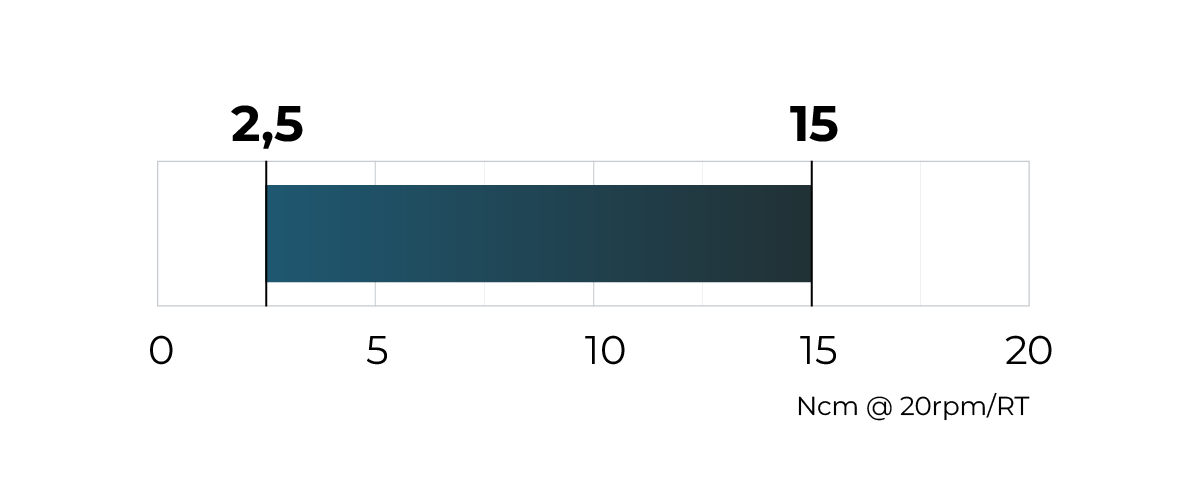

Torque schema 2,5 - 15 Ncm @ 20 rpm/RT
DIAMETER:

22

DIRECTION:

one way

TECHNICAL MATERIAL:

POM (gear) + PA6GF15 (base) + PA66 + silicone oil

MATERIAL:

plastic

CLIP:

-

Holes:

holes 5 mm

Applications

DE big rotary damper one way main applications are car steering columns, rear view cameras, as well as atm devices-continuous cashdisplays and vending machineselectric drills, lawnmowers, gasifiers, roller shutters and other medium and heavy applications.
