AXIAL DAMPERS
F SERIES Small axial barrel damper
SUBSERIES FC
Description
The small axial barrel damper FC is available in many torque from 5 Ncm to 9 Ncm. We can customize the product in any torque within this range. Customizations of color are also possible.

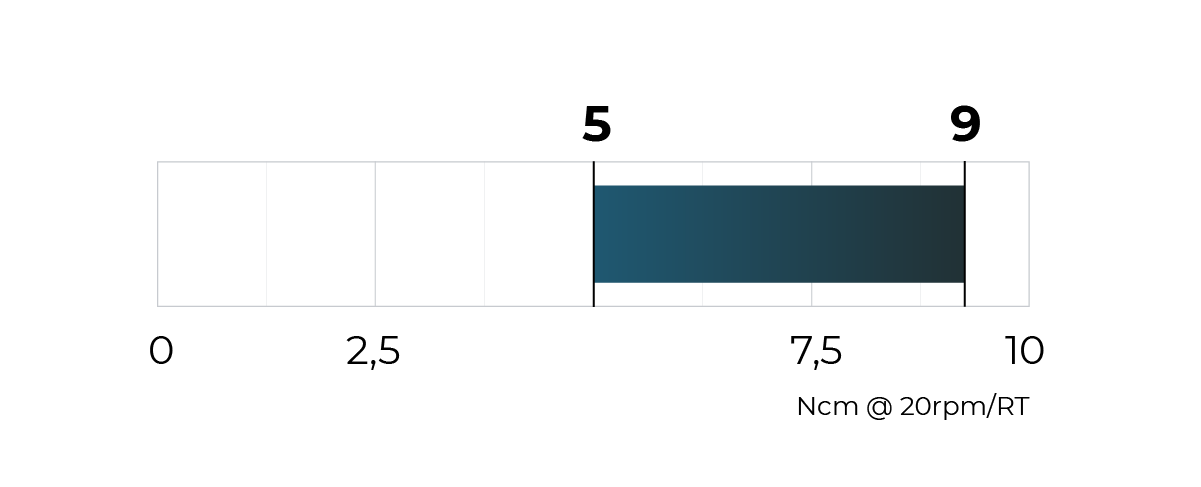

Torque (ncm):
5 -9 Ncm @ 20 rpm /RT
DIAMETER:
13
DIRECTION:
two ways
TECHNICAL MATERIAL:
POM (rotor) + PC (base) + silicone oil
MATERIAL:
plastic
CLIP:
-
Holes:
hole 3,7 mm
Applications
FC small axial barrel damper main applications are grab handles, internal and external handles, tablet holder, courtesy mirror, central armrest, fuel door and trunk handle, as well as on candy containers, covers for 3D printers and scanners, lawnmowers, hinges for ovens, doors and control panels for boilers and air conditioners and any other medium weight rotary applications.
Let's slow the world down!
Fill out the form to receive the technical datasheet and/or the 3d drawing of the product.
