AXIAL DAMPERS
F SERIES FQ9 axial barrel damper
SUBSERIES FQ
Description
The FQ9 small axial barrel damper is available with torque from 3Ncm to 7Ncm*. We can customize the product in any torque within this range. Customizations of color are also possible.
*preliminary results

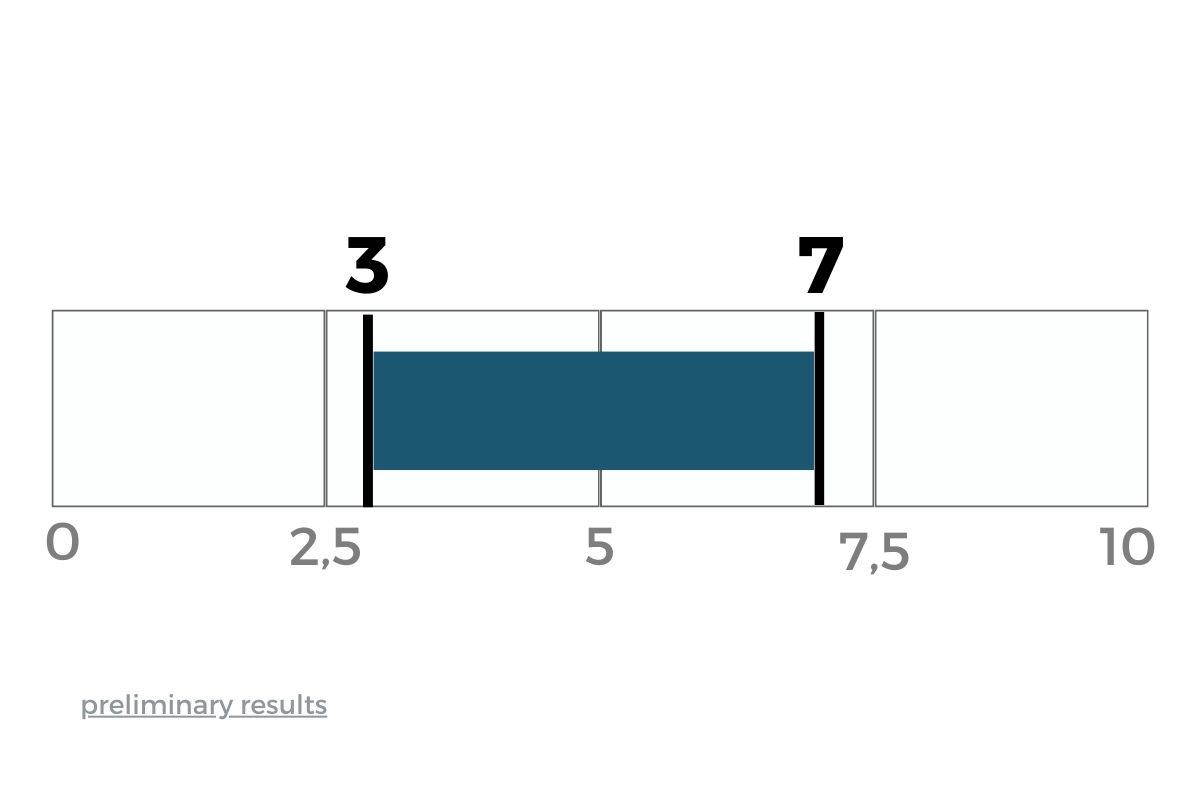

Torque (ncm):
3 - 7 Ncm @ 20rpm /RT
DIAMETER:
11,8
DIRECTION:
two ways
TECHNICAL MATERIAL:
POM (rotor) + PC (base) + silicone oil
MATERIAL:
plastic
CLIP:
double 1,3 x 8,15 mm
Holes:
hole 4,2 mm
Applications
FQ9 small axial barrel damper main applications are grab handles, internal and external handles, tablet holder, sunglass bin, courtesy mirror, central armrest, fuel door and trunk handle, as well as on candy containers, covers for 3D printers and scanners, lawnmowers, hinges for ovens, doors and control panels for boilers, air conditioners and any other medium or high weight applications.
Let's slow the world down!
Fill out the form to receive the technical datasheet and/or the 3d drawing of the product.
