AXIAL DAMPERS
D SERIES Big Axial Damper
SUBSERIES DD
Description
The Big Axial Damper DD has a diameter of 30 mm and available torque from 60 Ncm up to 130 Ncm. “One Way” function and his robustness make the DD damper an innovative and reliable product.

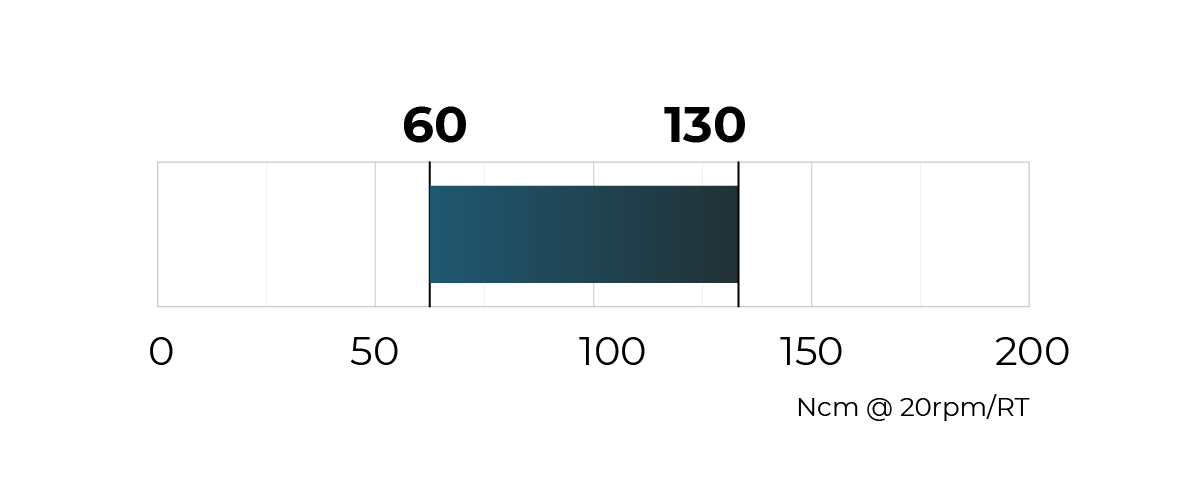

Torque (ncm):
60 - 130 Ncm @ 20 rpm/RT
DIAMETER:
30
DIRECTION:
one way
TECHNICAL MATERIAL:
AISI304+POM (rotor) + PA6GF15 (base) + PA66 + silicone oil
MATERIAL:
plastic
CLIP:
-
Holes:
hex or torx hole
Applications
DD Big Axial Damper main applications are car steering columns, grab handles, internal and external handles, tablet holders, fuel doors as well as displays and vending machines and rice cookers and other medium and heavy applications.
