AXIAL DAMPERS

B SERIES
Small axial barrel damper high torque
SUBSERIES BF

Description

The BF small axial barrel damper high torque can rotate in both directions for 110° and is available in torque of 15, 20 and 30 Ncm. Customizations of torque or color are possible.

Torque (ncm):

15 - 30 Ncm @20rpm /RT

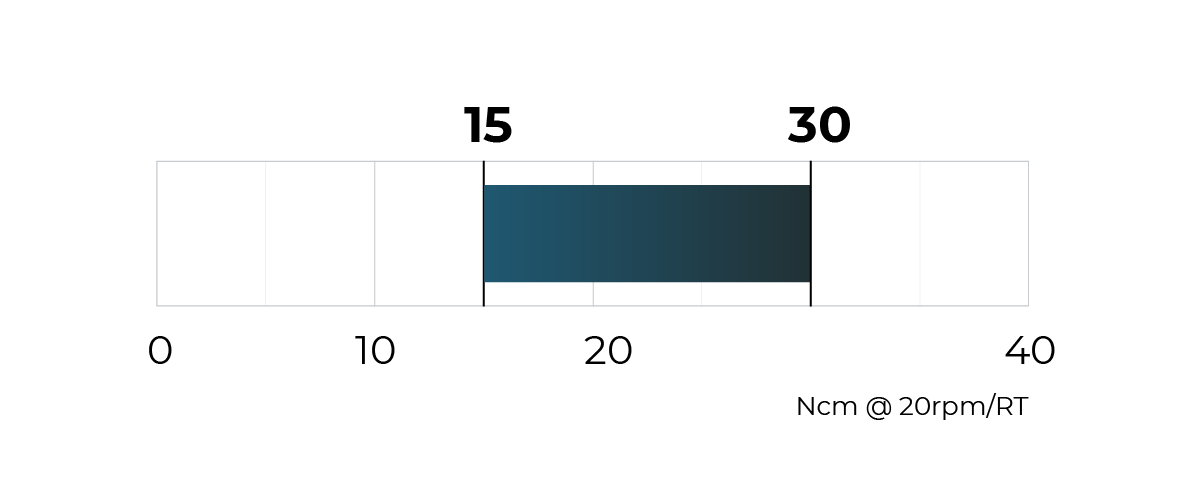

Torque schema 15 - 30 Ncm @20rpm /RT
DIAMETER:

13

DIRECTION:

two ways

TECHNICAL MATERIAL:

POM (rotor) + PA6GF15 (base) + silicone oil

MATERIAL:

plastic

CLIP:

-

Holes:

-

Applications

BF small axial barrel damper high torque main applications are grab handles and tablet holders as well as shelves for hand luggage for airplanes, candy containers, rice cookers, doors and control panels for boilers and air conditioners.
