AXIAL DAMPERS
F SERIES Axial barrel damper mono
SUBSERIES FA MONO
Description
The axial barrel damper FA MONO is the first one-way axial damper in this category. It is available in many torques ranging from 4 Ncm to 11.5 Ncm. We can customize it to any torque within this range. Color customization is also available.

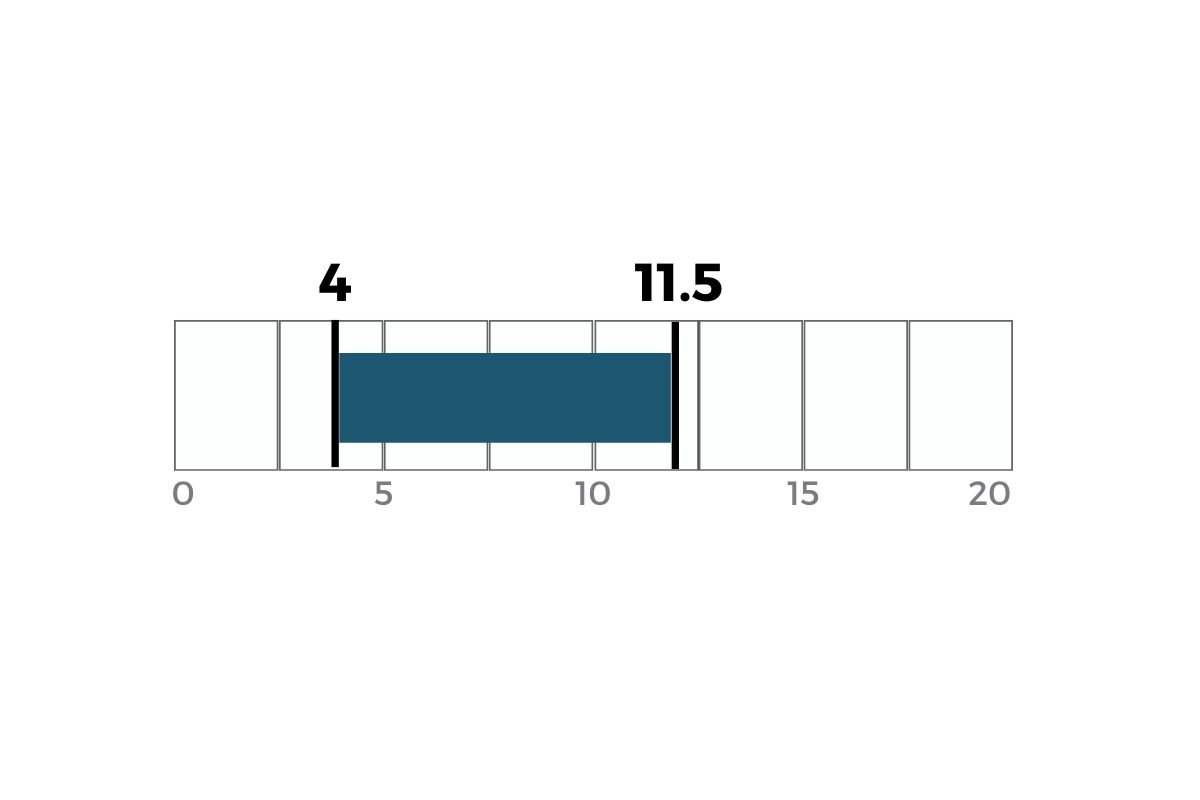

Torque (ncm):
4 - 11.5 Ncm @ 20 rpm / RT
.jpg?date=08:02:20)
DIAMETER:
13
DIRECTION:
One way
TECHNICAL MATERIAL:
POM (rotor) + PC (base) + silicone oil
MATERIAL:
plastic
CLIP:
-
Holes:
hole 3,2 mm
Applications
Main applications for the FA MONO axial damper include grab handles, interior and exterior handles, tablet holders, courtesy mirrors and center armrests, fuel door and trunk handles, as well as candy containers, lids for 3D printers and scanners, lawn mowers, oven hinges, boiler and air conditioner doors and panels, and any other small to medium rotary application.
Let's slow the world down!
Fill out the form to receive the technical datasheet and/or the 3d drawing of the product.
