旋转阻尼器
D SERIES DS - The Konstant damper
SUBSERIES DS
描述
The DS - The Konstant Damper is an innovative damper designed to maintain a constant torque throughout the temperature range of -40°C to +90°C with a torque of 6.2 Ncm. For lower torque requirements, please contact our team at sales@cultraro.it.
Key Features
- Unique solution on the market: is the first damper with constant performance as temperature changes.
- Color customization: the basic version is available in green, white and red, but there is a possibility of customization upon request.
- Mounting versatility: The design of the holes allows for flexible mounting, either by screws or hot-pressing tips.

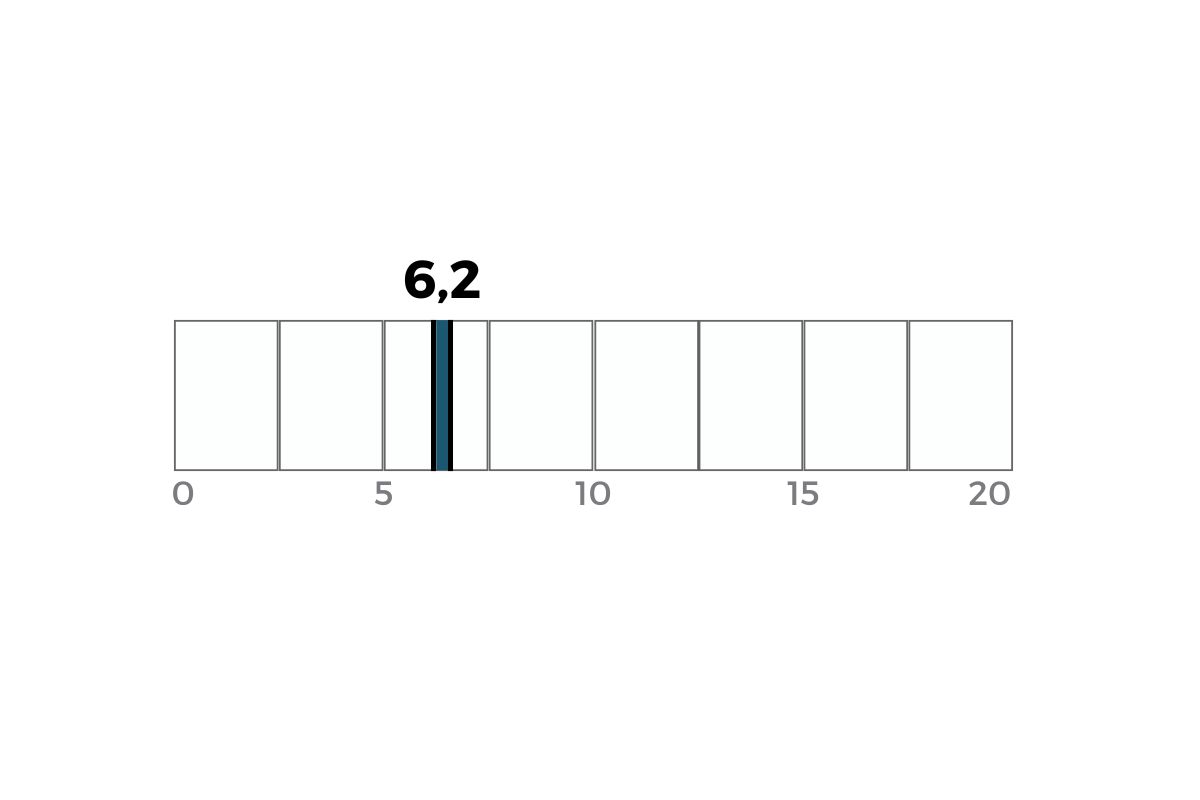

Torque (ncm):
6,2 ± 1,3 Ncm @ 20 rpm/RT
直径:
22
方向:
two ways
技术资料:
POM (gear) + PA6GF15 (base) + PA66 + silicone oil
材料:
plastic
卡接方式 :
-
Holes:
holes 5 mm
应用
Ideal applications
The DS - The Konstant Damper is ideal for industries requiring high precision and resistance to temperature changes:
- Automotive: Torque stability even under changing temperature conditions.
- Medical: Precision and reliability are essential for thermally stressed devices.
- Precision technologies: ideal support for machines and devices requiring constant torque stability.
Let's slow the world down!
填写表格以接收技术数据表和/或产品的 3d 图纸。
