轴向阻尼器
F SERIES FQ9 axial barrel damper
SUBSERIES FQ
描述
The FQ9 small axial barrel damper is available with torque from 3Ncm to 7Ncm*. We can customize the product in any torque within this range. Customizations of color are also possible.
*preliminary results

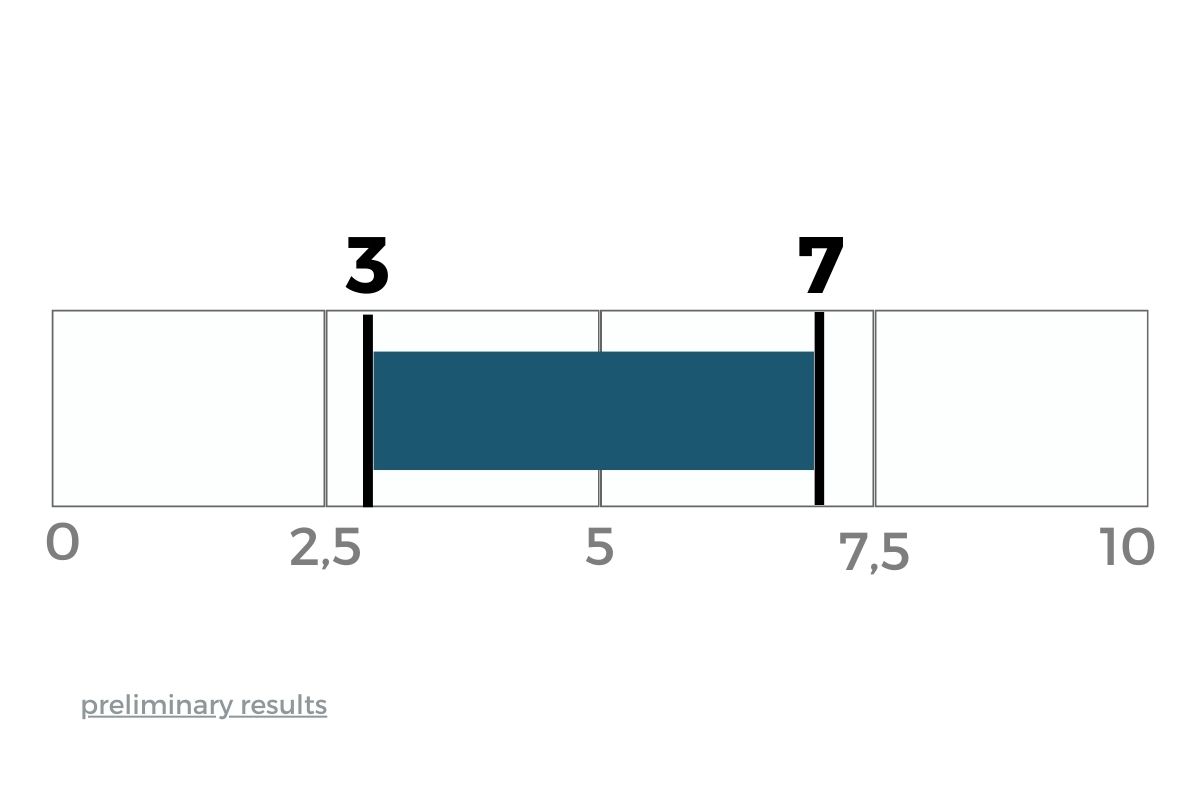

Torque (ncm):
3 - 7 Ncm @ 20rpm /RT
直径:
11,8
方向:
two ways
技术资料:
POM (rotor) + PC (base) + silicone oil
材料:
plastic
卡接方式 :
double 1,3 x 8,15 mm
Holes:
hole 4,2 mm
应用
FQ9 small axial barrel damper main applications are grab handles, internal and external handles, tablet holder, sunglass bin, courtesy mirror, central armrest, fuel door and trunk handle, as well as on candy containers, covers for 3D printers and scanners, lawnmowers, hinges for ovens, doors and control panels for boilers, air conditioners and any other medium or high weight applications.
Let's slow the world down!
填写表格以接收技术数据表和/或产品的 3d 图纸。
